Corrosion Resistant Aluminum Components for Improved Cost and Performance of Ultra-Deepwater Offshore Oil Production
Project Number
FWP-072971
Last Reviewed Dated
Goal

The goal of this project is to develop critical technologies that will support the industry’s development of aluminum risers for ultra-deepwater drilling and production. The primary technical objective to support this project is the development of high strength, corrosion resistant weldments that connect 7XXX series aluminum riser flanges and pipes. A secondary technical objective with this project is the development of technologies that will mitigate the corrosion of 7XXX series alloys. Theses technical objectives will be accomplished by: 1) Development of a friction stir welding process to join forged 7XXX aluminum flanges with extruded 7XXX pipes. 2) Establishing a post weld heat treatment schedule for 7XXX aluminum joints to improve corrosion resistance and weld strength. 3) Exploring cold spray applications as a corrosion mitigation strategy.

Performer(s)

Pacific Northwest National Laboratory (PNNL) – Richland, WA 99354

Background

Commercial oil production from conventional deepwater (<7000 feet) resources has been successfully demonstrated on three separate aluminum riser systems operating in Brazilian waters. More than 12 years of continuous service at depths up to 7200 feet have shown that low strength aluminum risers are viable in seawater environments.  Moving aluminum riser technology to ultradeep water (>7000 ft) requires the use of higher strength aluminum, such as 7XXX alloys, which present several critical challenges. For example, 7XXX aluminum risers were used to achieve water depths of 9,900 feet in the Perdido Oil Field, but corrosion issues encountered during the project prevented long term use of the aluminum riser string. One of the largest challenges is riser strength. The relatively low strength of aluminum alloys currently deployed in deepwater applications is insufficient for ultra-deepwater. In order to use existing deepwater riser designs (low strength aluminum) for ultra-deepwater applications, the flange and pipe wall thicknesses have to be significantly increased to support the higher tension load (due to increased depth) and increased fatigue loading inherent to longer riser strings. This added mass entirely negates all of the weight saving advantages of aluminum. Changing to 7XXX series aluminum requires development of the welding process that joins a forged flange to an extruded pipe, and post-weld heat treatment schedules to improve corrosion resistance and strength of the weld.

Another challenge is seawater corrosion. Deepwater aluminum risers rely solely on sacrificial anodes to mitigate corrosion. Industry views this approach as too risky for ultra-deepwater applications due to the increased surface area of the longer riser string and greater current fluctuations across extreme water depths. To mitigate this risk, a defense-in-depth approach is proposed where a corrosion protection strategy will employ both sacrificial anodes and a corrosion coating system applied to the fabricated riser.

Detailed financial analysis has shown that replacing steel production risers with aluminum is a promising approach to dramatically improve the economics of oil production from ultra-deepwater resources. For example, extending the offshore depth from 4000 feet to 9000 feet would cost an estimated $33M using aluminum risers compared to $200-300M with conventional steel risers. This is because the use of steel risers requires that rigs be significantly modified to increase deck load capacity, an extremely expensive proposition.


Impact

The replacement of steel with aluminum for construction of risers will greatly improve the economic feasibility of oil production from ultra-deepwater resources. Successful completion of this project will strengthen the upstream sector by enhancing the ability of the oil and gas industry to target resources that are currently beyond economic reach.
Specific benefits of aluminum risers include 34% weight reduction compared to steel, higher strength to weight ratio, lower string tensioning force, reduced deck load per foot of riser, and reduced transport costs which all lead to deeper and more cost-effective drilling capability. Despite this largely untapped global, and particularly US, opportunity for ultra-deepwater oil production, there remain significant materials, joining, and corrosion challenges that are currently preventing the deployment aluminum risers for ultra-deepwater applications. This project aims to address these technical barriers, thereby accelerating the transition from steel to aluminum production risers by industry.


Accomplishments (most recent listed first)

Throughout this project, efforts have focused on three primary task areas: 1) Continuing to develop the weld process to improve mechanical properties, 2) continuing to develop the weld process to improve corrosion performance, and 3) develop the cold spray coating process, and chemistry of the metallic coating, to provide the highest corrosion and wear protection.

Friction Stir Welding Process Development for Strength

  • Experimentally determined weld process windows and optimized parameters that are leading to better and better strengths and therefore better Weld Strength Reduction Factors (joint efficiency in terms of Yield Strength of base material) for design.
  • Completed 2 rounds of weld process development and have moved weld speeds up from 4 inches (101.6mm) per minute to 12 inches (304.8 mm) per minute. Cross weld tension testing has shown Ultimate Tensile strength above 500MPa and is reaching Weld Strength Reduction Factors above 70%.
  • Developed composite material anvils or backing bars under the weld that have optimized thermal conductivity to extract heat from the HAZ but retain it below the nugget. (Fig. 1a) This has led to yield strength improvements of 9% over monolithic steel backing anvils.

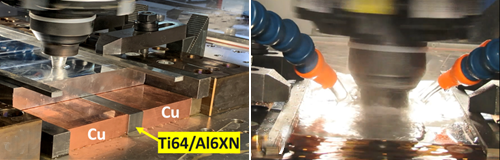

    Figure 1     a) “Composite” metal anvil using high and low conductivity metals to manage thermal conductivity in the welded plate. b) Trailing water spray to increase cooling rate behind the tool
    Figure 1     a) “Composite” metal anvil using high and low conductivity metals to manage thermal conductivity in the welded plate. b) Trailing water spray to increase cooling rate behind the tool
  • Developed a trailing water spray system used during welding to cool the Heat Affected Zone (HAZ) and improve properties. (Fig. 1b) This form of boundary control has led to a Yield Strength improvement of 13-19%, and an improvement in Ultimate Tensile Strength of 13-18% compared to in-air welding


Friction Stir Weld process development for corrosion performance

  • Preliminary work is showing excellent results from a hardness perspective where secondary processing is significantly bringing up the HAZ minimum hardness. Figure 2a,b shows the results from processing the HAZ with a tool much narrower than the HAZ width showing hardness increase adjacent to the nugget.
    Figure 2   a) Hardness plot showing severe property depression in the HAZ,  b) Hardness plot after post weld processing with a narrow shallow pass over the left side HAZ. When a narrow friction processed zone is placed on the left side on the nugget there is a strong hardness recovery after heat treat suggesting that this region has been solutionized and may have a recovered corrosion response as well.
    Figure 2   a) Hardness plot showing severe property depression in the HAZ,  b) Hardness plot after post weld processing with a narrow shallow pass over the left side HAZ. When a narrow friction processed zone is placed on the left side on the nugget there is a strong hardness recovery after heat treat suggesting that this region has been solutionized and may have a recovered corrosion response as well.


Cold Spray Process development

  • Completed 1st Phase of the corrosion mitigation studies by developing the cold spray process and downselecting metal coating chemistry
  • Completed preliminary process development and sent specimens to West Moreland Testing and Research Inc for saltwater corrosion performance per ASTM D1141 and ASTM G31. Coatings were ranked on corrosion protection performance. Based on test results, downselected Ni-CrC/NiCr for further cold spray development.
  • Completed microstructural characterization and wear testing of Ni-CrC/NiCr, Al-Zn-In, Al-Al2O3-ZrO2-SiO2 cold spray layers which also supported down selecting of Ni-CrC/NiCr for further investigation
    Figure 3  Results of seawater corrosion testing and sliding wear testing on cold spray coatings
    Figure 3  Results of seawater corrosion testing and sliding wear testing on cold spray coatings



  • Xymat Engineering has fabricated a full diameter, full wall thickness, 10-foot-long riser section using Friction Stir Welding (Fig. 4). This demonstrator utilizes 30-inch diameter forged flanges joined by FSW to a 10 foot long, 1 inch wall pipe section. Pipe and Flange are AA 7175. This riser section is the first demonstration of a full-scale FSW fabricated riser using ultra high strength aluminum alloys.
    Figure 4 Full diameter, full wall thickness, 10-foot-long riser section fabricated using Friction Stir Welding
    Figure 4 Full diameter, full wall thickness, 10-foot-long riser section fabricated using Friction Stir Welding



Current Status

Efforts to increase weld speed for the purpose of increasing cross weld strength properties are ongoing. With each optimization of tool design and process strategy we are observing incremental improvements in strength. In the final months of the project, we will develop the two-sided weld concept that allows speeds up to 20 inches a minute. We expect to see a significant improvement in strength using this strategy.

From a corrosion performance perspective, we are wrapping up the research efforts around optimizing the Cold Spray Ni-CrC/NiCr chemistry as the best coating material. Cold spray process parameters are being collected and optimized for tech transfer to a field service provider as part of the corrosion and wear protection strategy.

The subtask to reset the microstructure of the HAZ on the outside diameter of the pipe on each side of the weld has potential to be a game changing technique (even potentially to “fix” the HAZ of a fusion welded pipe). During the remaining project performance period we will develop this post weld technique and measure the effect on generalized and localized corrosion and pitting through ASTM seawater corrosion testing trials.


Project Start
Project End
DOE Contribution

$1,500,000.00

Performer Contribution

$0.00

Contact Information

NETL: David Cercone (david.cercone@netl.doe.gov or 412-386-6571)
PNNL: Glenn Grant (glenn.grant@pnnl.gov or 509-375-6890)
